Audio routing that works the way you think

Free, open-source, node-based audio routing that works the way you think for macOS, Linux and Windows.

Build a node graph of inputs, effects, and outputs. Process any audio source in real time with a flexible processing pipeline.

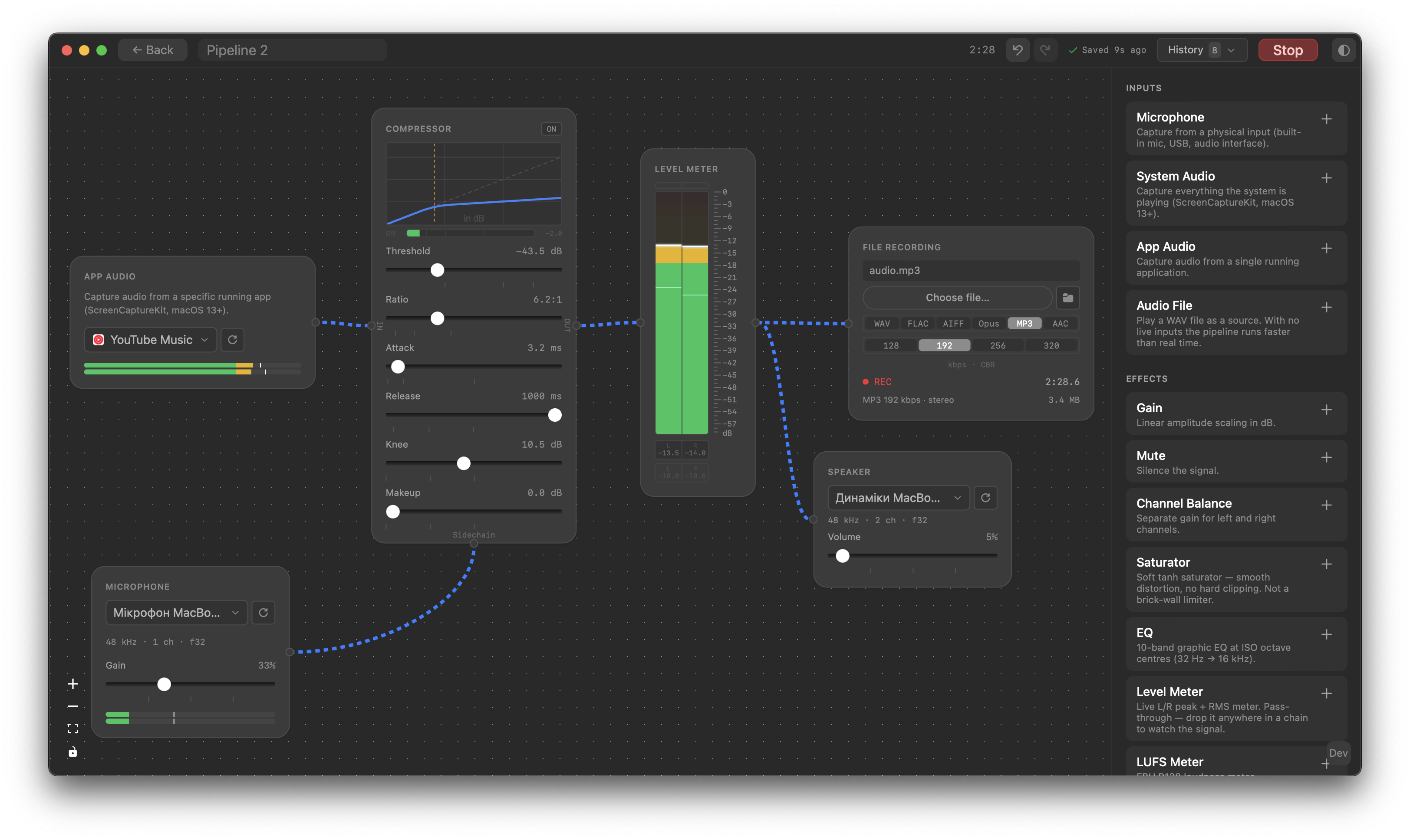

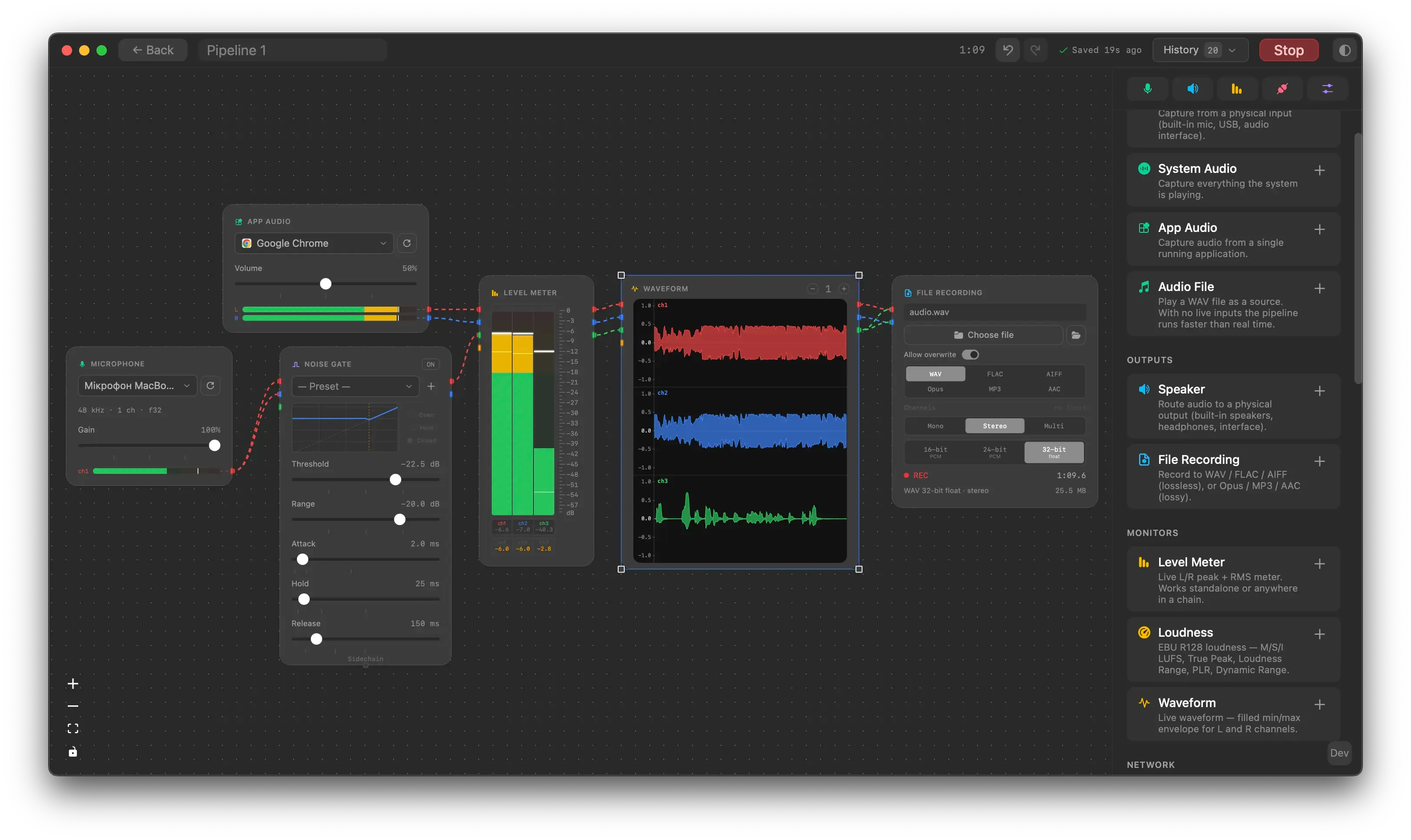

Splitwave audio routing pipeline editor on macOS

Twenty-seven building blocks for routing audio between apps

Microphone node — Splitwave audio routing
System Audio node — Splitwave audio routing
App Audio node — Splitwave audio routing
Audio File node — Splitwave audio routing
Gain node — Splitwave audio routing
Mute node — Splitwave audio routing
Channel Balance node — Splitwave audio routing

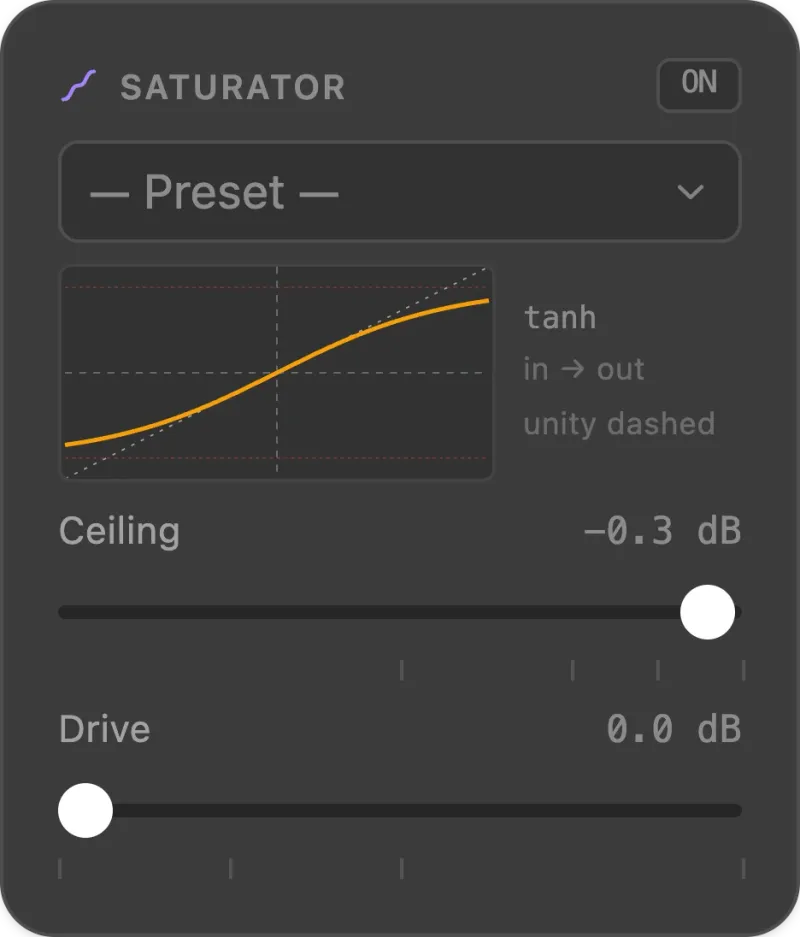

Saturator node — Splitwave audio routing

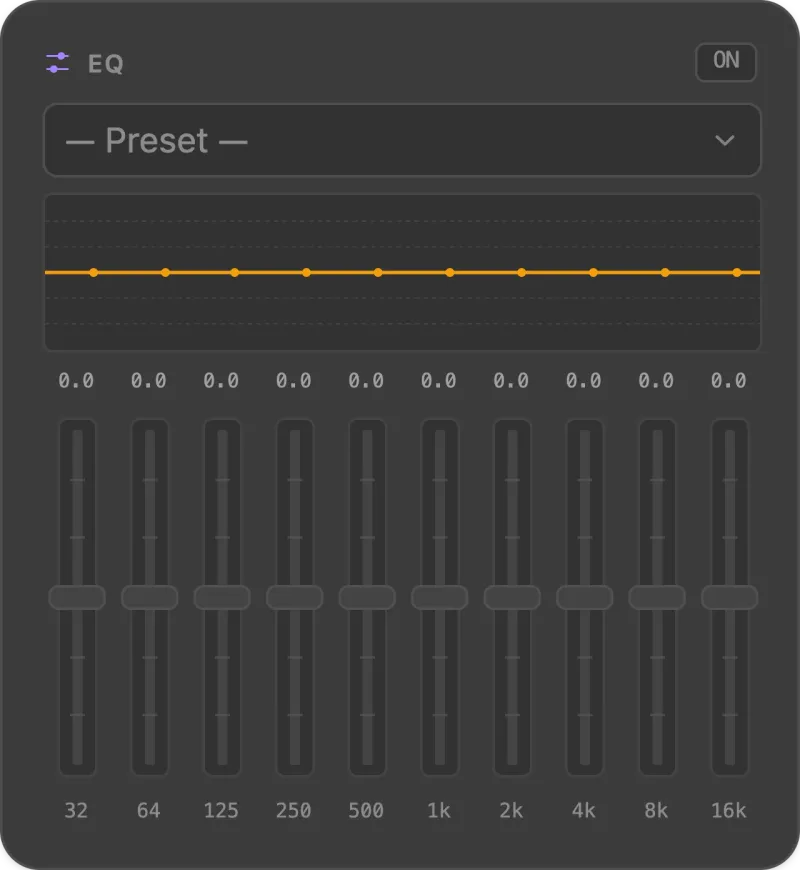

Eq node — Splitwave audio routing

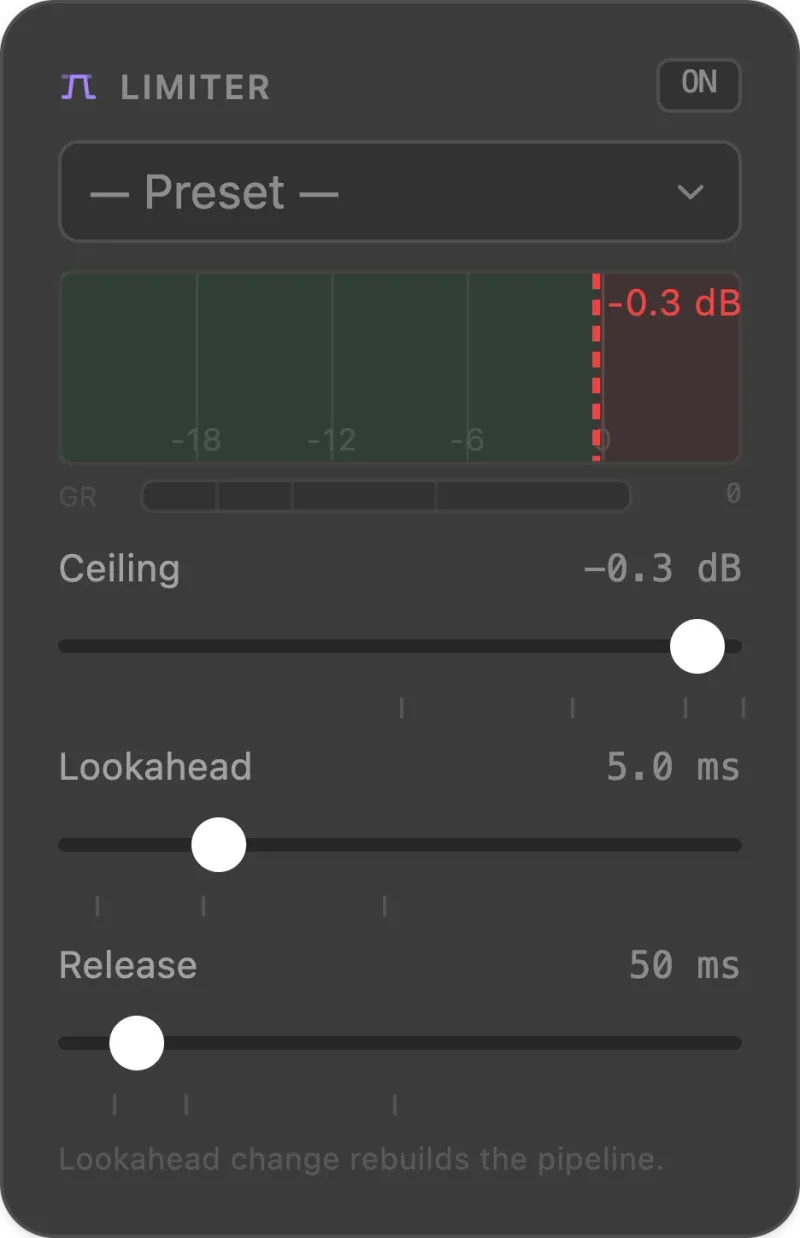

Limiter node — Splitwave audio routing

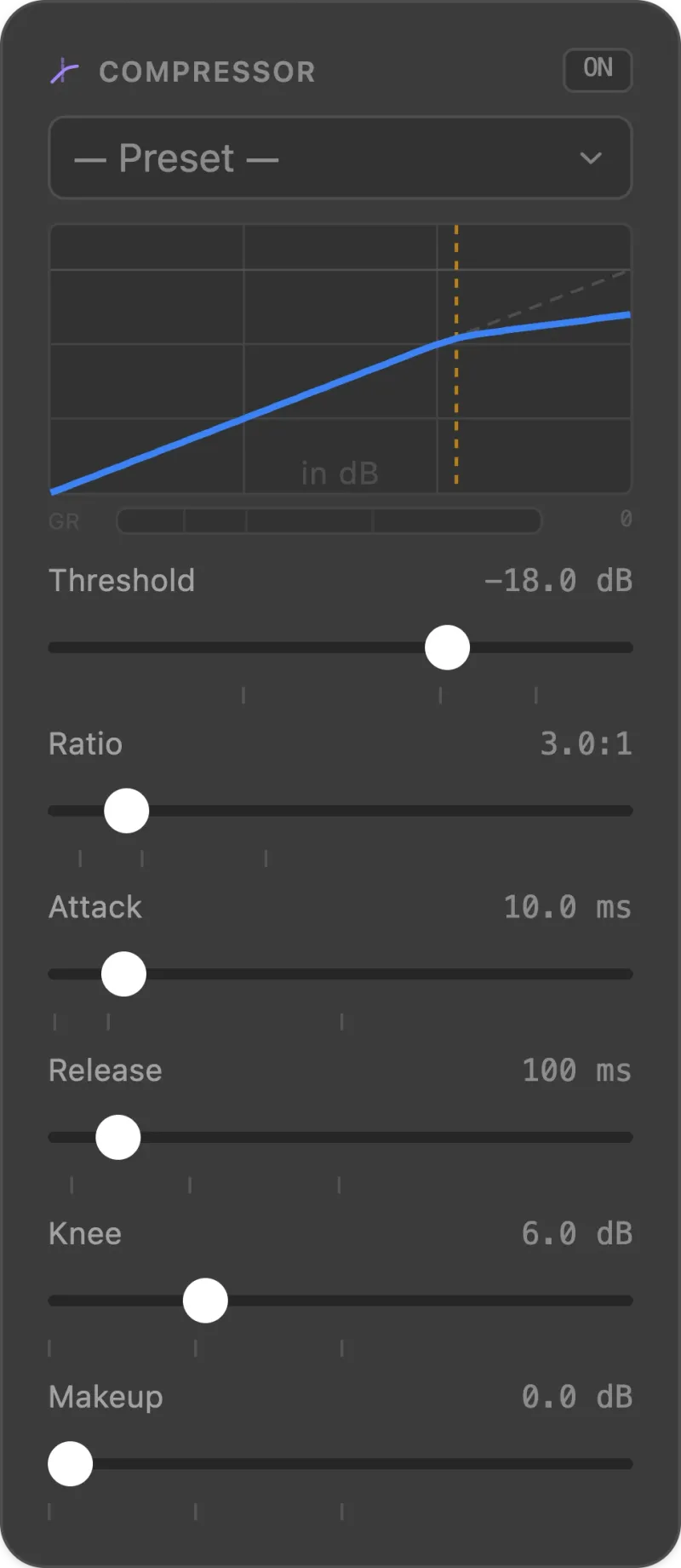

Compressor node — Splitwave audio routing

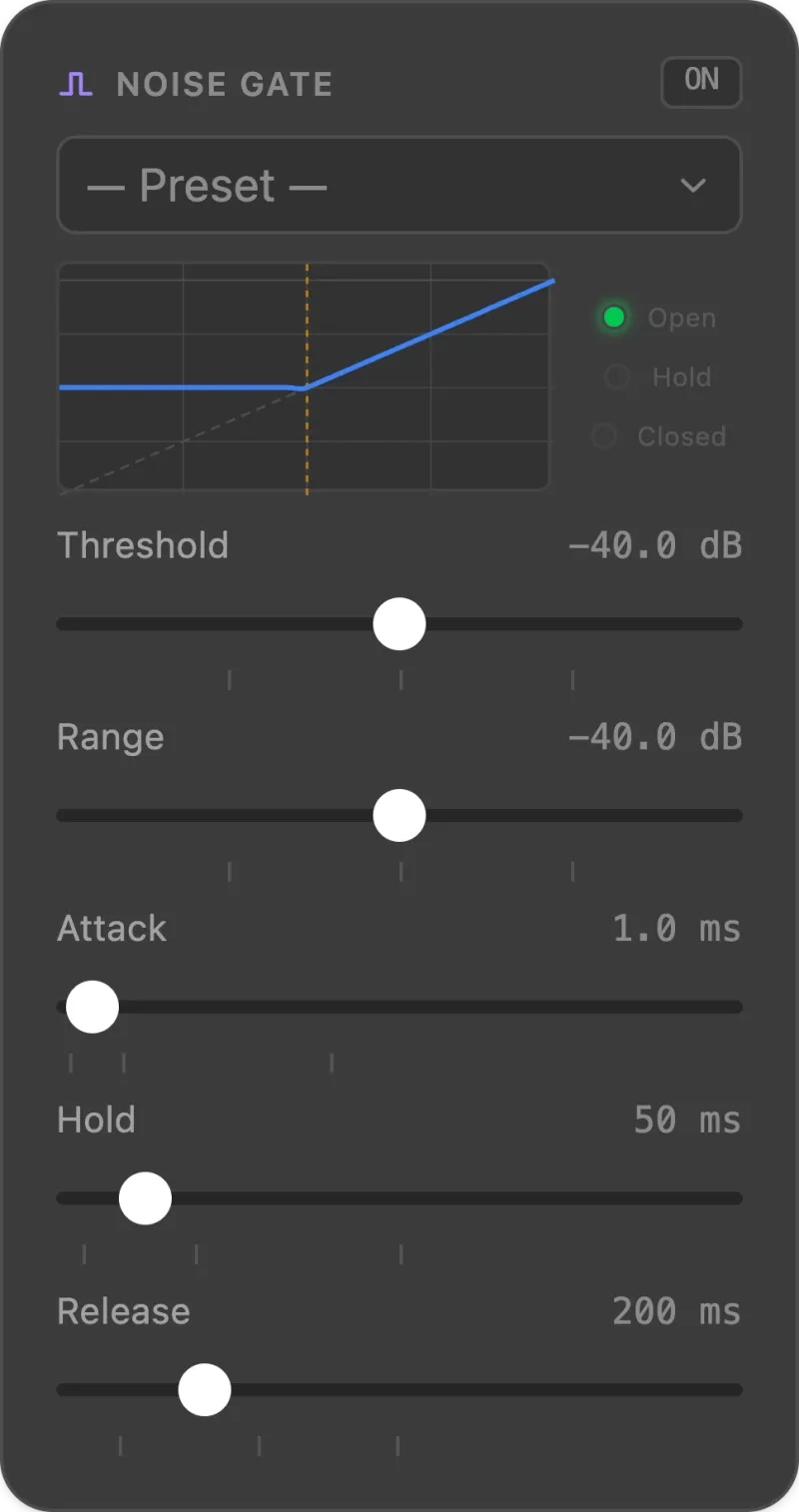

Noise Gate node — Splitwave audio routing

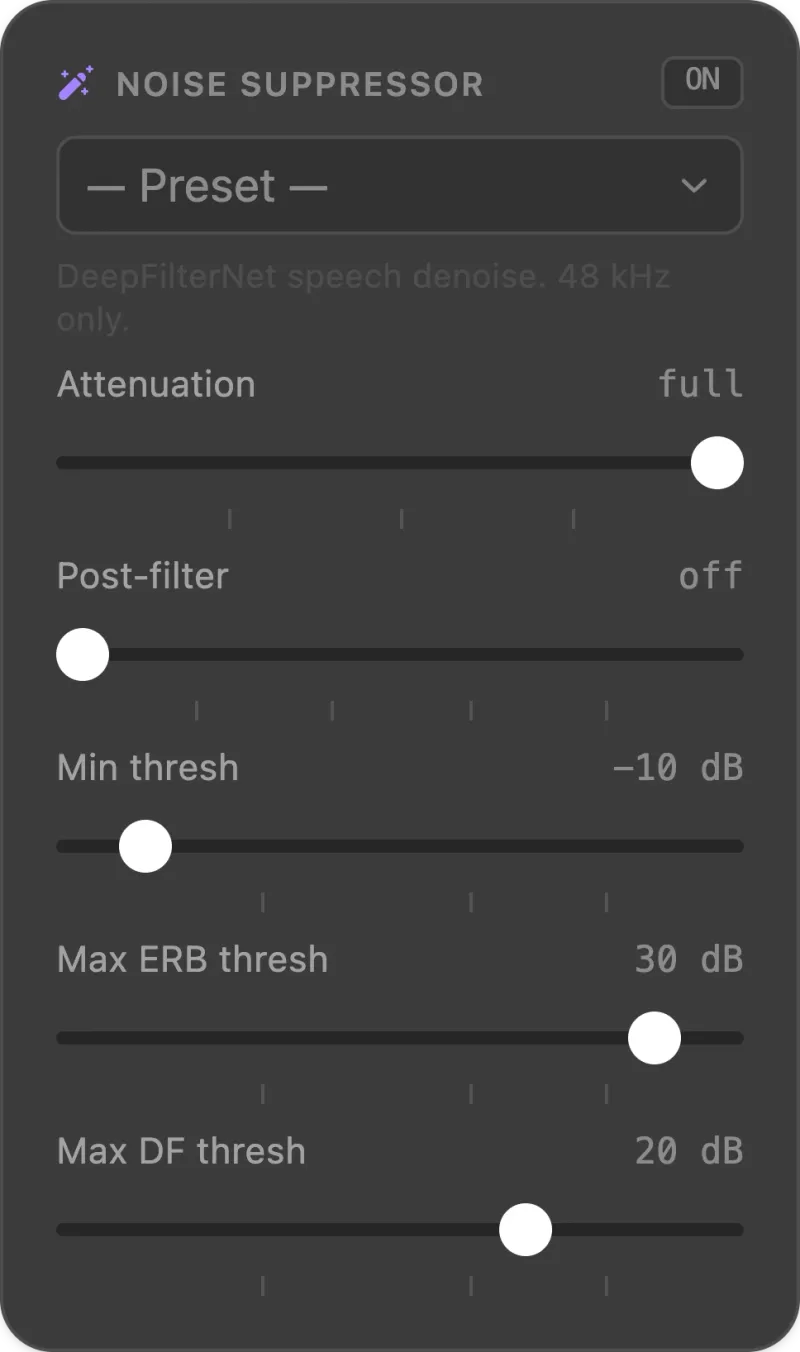

Noise Suppressor node — Splitwave audio routing
Delay node — Splitwave audio routing

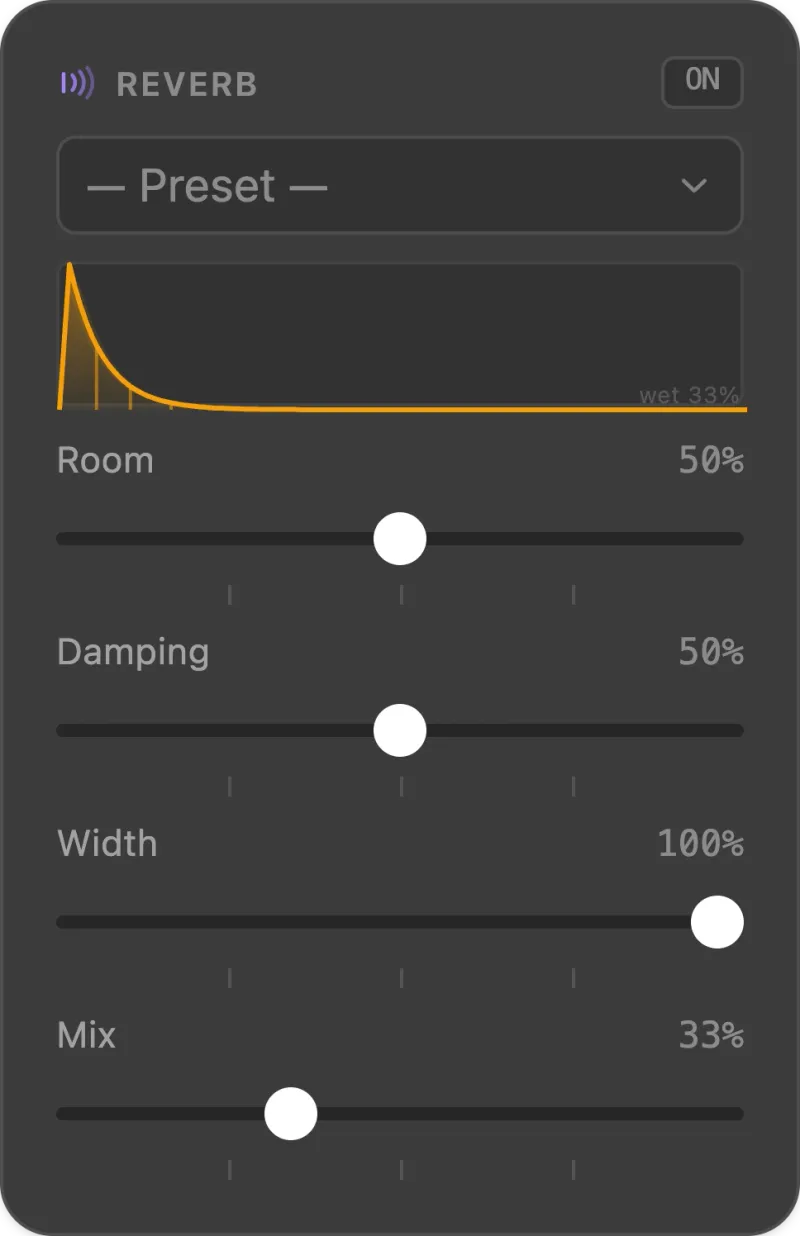

Reverb node — Splitwave audio routing
Declick node — Splitwave audio routing

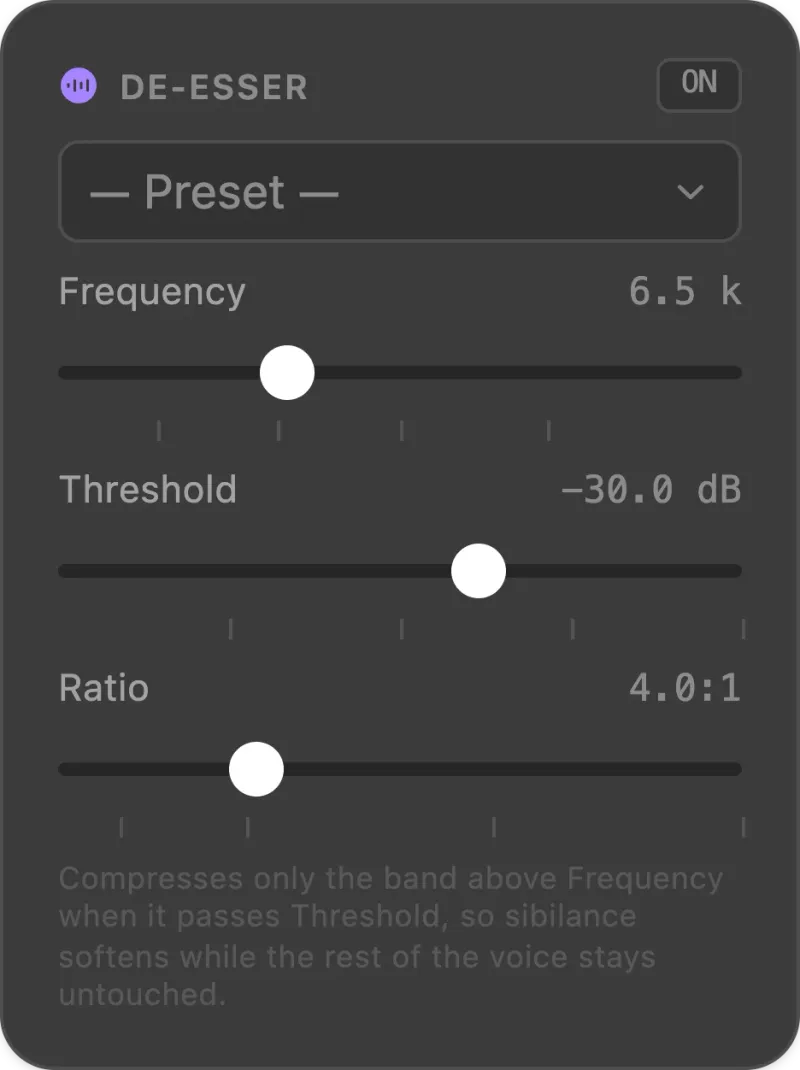

De Esser node — Splitwave audio routing
Plugin node — Splitwave audio routing

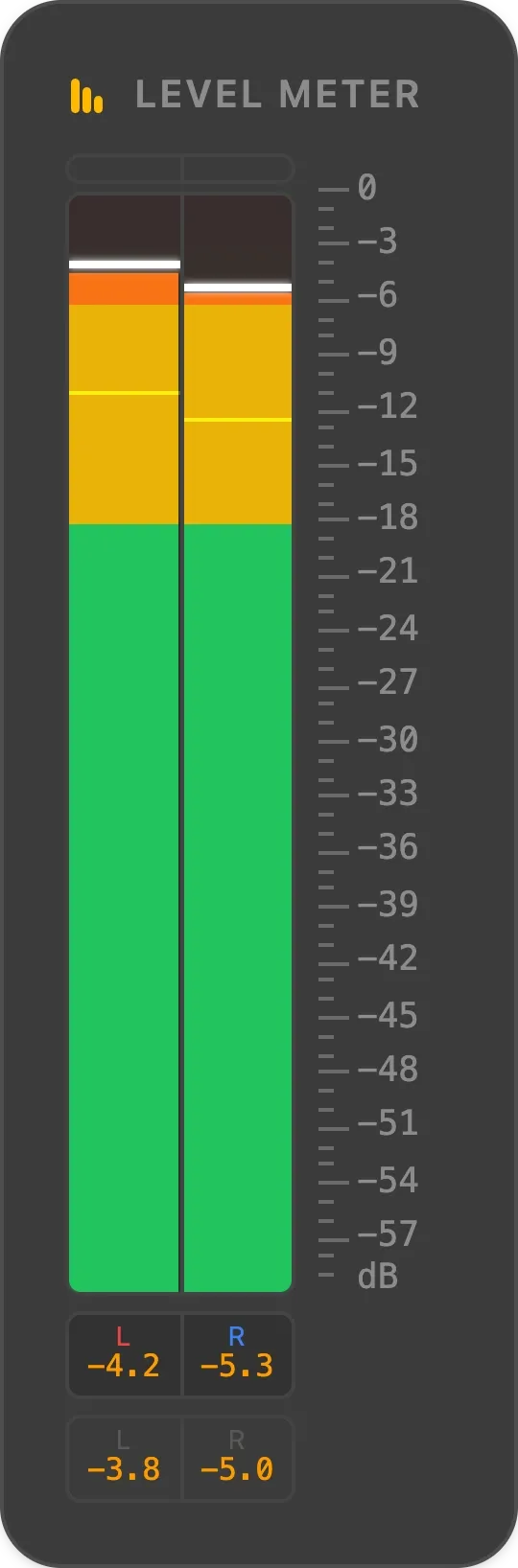

Level Meter node — Splitwave audio routing

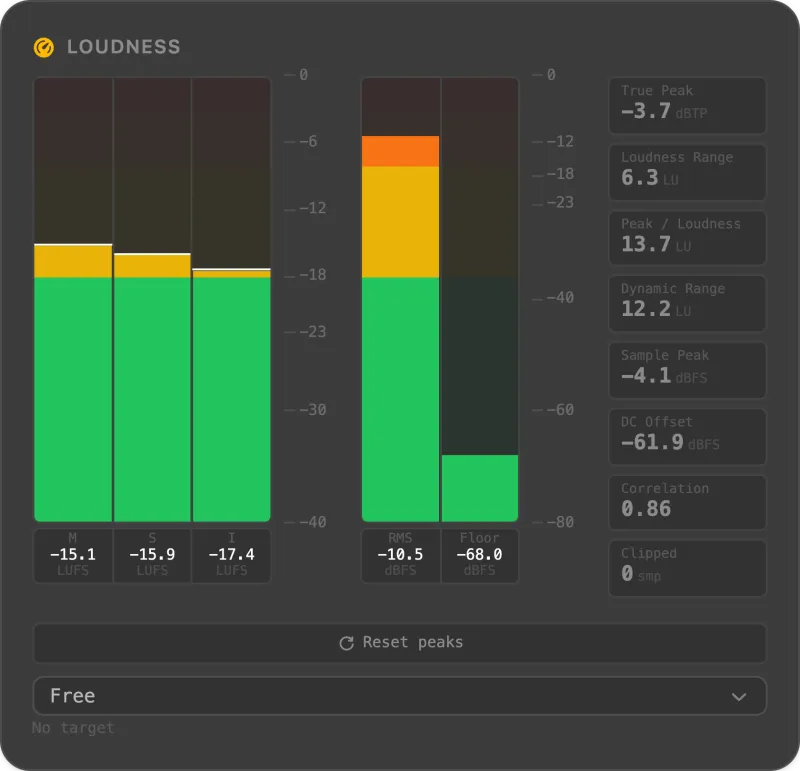

Lufs Meter node — Splitwave audio routing

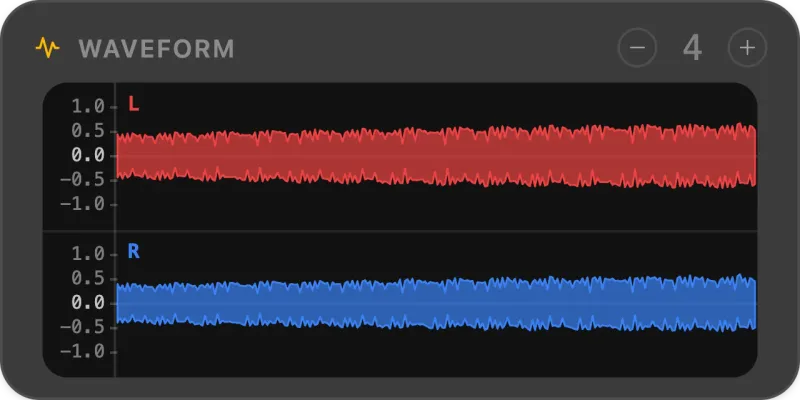

Waveform node — Splitwave audio routing

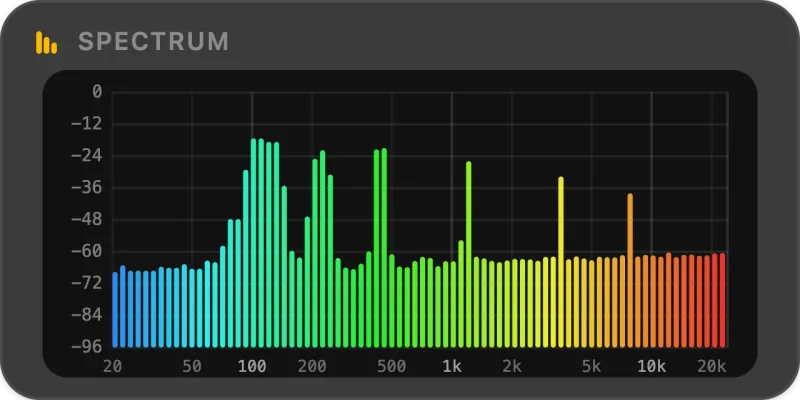

Spectrum node — Splitwave audio routing

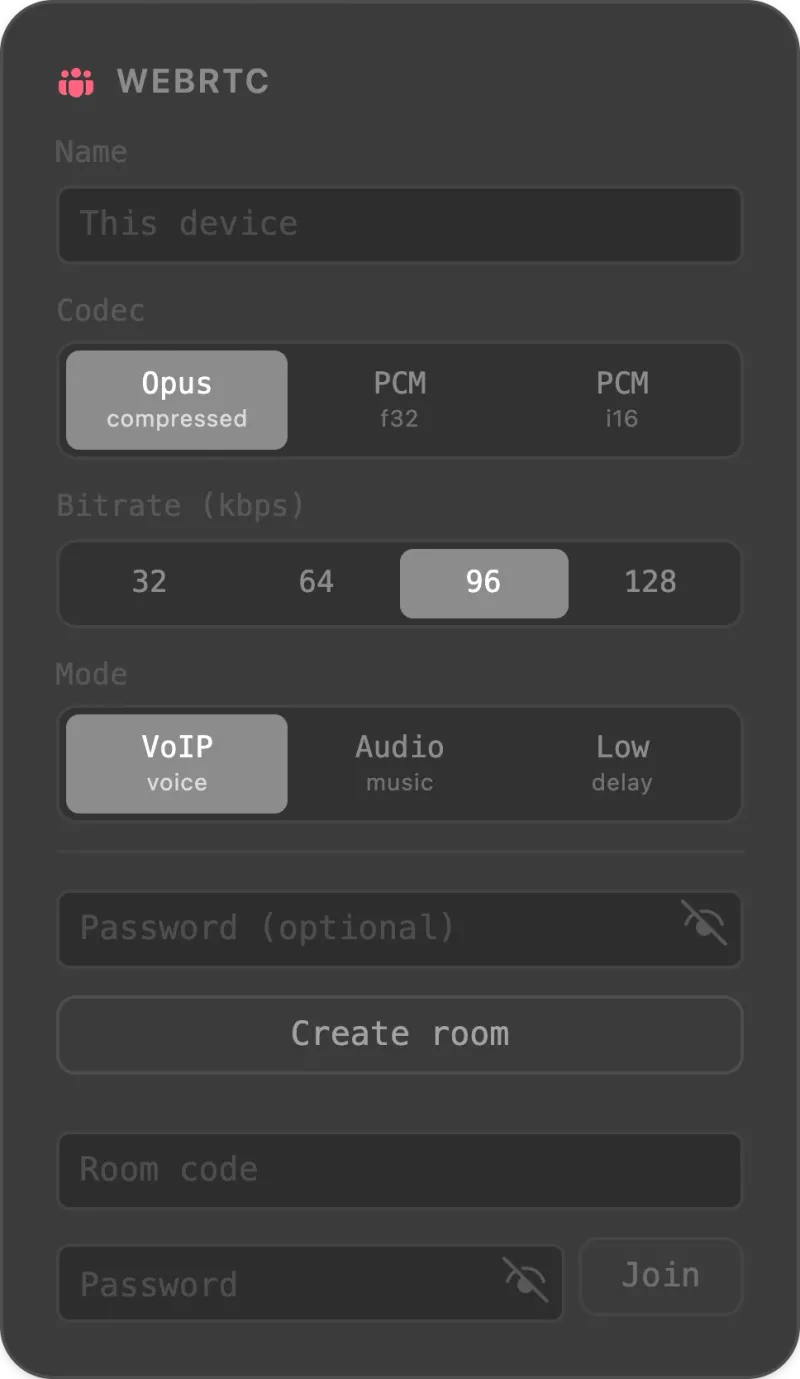

Web Rtc Collaborator node — Splitwave audio routing
Net Receiver node — Splitwave audio routing
Net Sender node — Splitwave audio routing
Speaker node — Splitwave audio routing

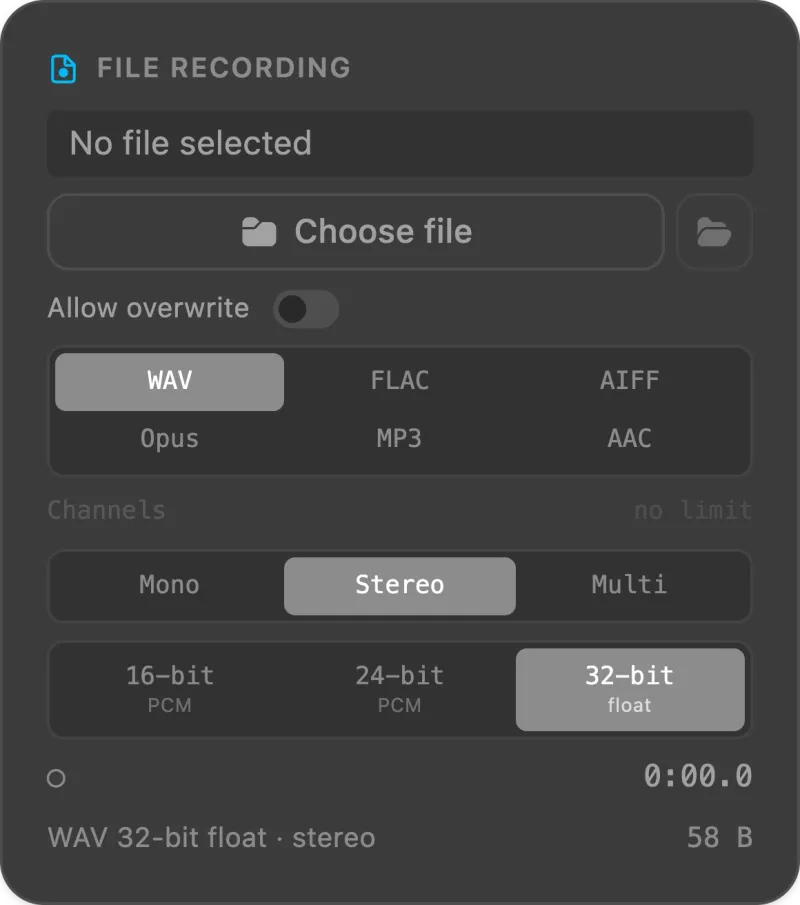

File Recording node — Splitwave audio routing

Microphone

Virtual audio devices the whole system can see

On macOS and Linux, Splitwave installs a driver and creates virtual audio cables — devices the system treats as real hardware. On Windows, Splitwave can download and set up VB-CABLE for you. Any app can play into one, and any app can pick one as its microphone. Both ends land in your graph.

Zoom, Chrome, a DAW

plays into it

Virtual device

real hardware to the OS

Your graph

arrives as a source node

Your graph

processed and mixed

Virtual device

real hardware to the OS

Any app

picks it as its microphone

Up to 256
channels per device
Any number
of devices, named by you
No routing app
to install alongside

Virtual devices are available on macOS and Linux.

One signal, end to end — capture, effects, output

From microphone and system audio capture through noise suppression, EQ and compression to recording — arranged the way audio actually travels. Pick a stage.

Anything the machine can hear becomes a source node.

  • Microphone & audio interfaces
  • System audio
  • Per-app audio
  • WAV file playback with looping
  • Virtual device loopback

VST3, AU and CLAP plugins are just more nodes

Point a Plugin node at anything already installed on the machine — CLAP, AU or VST3 — and wire it into the chain like a built-in effect. Same cables, same signal.

CLAP
AU
VST3

Plugin node

hosts it in the graph

The rest of your chain

meters, outputs, peers

CLAP
The open format, with per-parameter modulation built in.
AU
Audio Units from your existing macOS library.
VST3
The format most third-party effects still ship in.
Native editor
opens straight from the node
Automatable
parameters exposed on the node
Full node width
if the plugin takes it, stereo pairs if not

A plugin is first offered the node's full channel count, and one instance handles everything. If it refuses that layout, the signal runs as stereo pairs with an instance per pair, and every instance follows the same parameter changes. Audio Units are a macOS format, so AU hosting is macOS-only.

The graph can leave the machine

A cable can run to another computer. Whatever comes back shows up as an ordinary source node, no different from a microphone.

THIS MACHINE

Your graph

inputs, effects, outputs

UDP · WebRTC

ANYWHERE ELSE

Peer receiving your mix

Peer sending theirs back

WebRTC
Peers connect both ways. Each one arrives as its own source node.

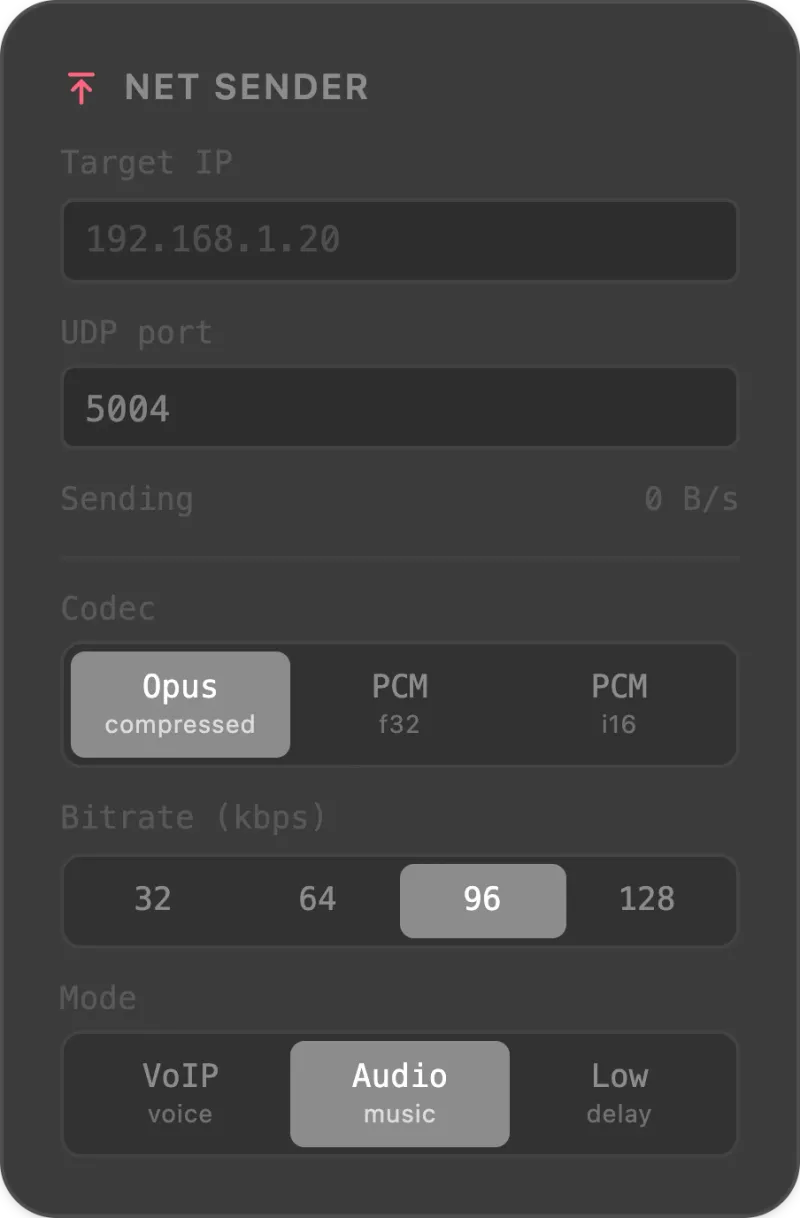

Net Sender
Push a signal over UDP to a direct IP, as Opus or raw PCM.
Net Receiver
Pull a signal over UDP from a direct IP, as Opus or raw PCM.

One app on macOS, Linux and Windows

The same graph, nodes and effects everywhere. What differs is how each system lets audio in and out.

macOS

Runs on
macOS 13 Ventura or newer, Apple Silicon and Intel
Virtual devices
As many as you need, with your own names
Password to install
Once, for the audio driver
System audio capture
Yes
Per-app audio capture
Yes
Plugins
AU, CLAP, VST3
Recording formats
WAV, FLAC, AIFF, MP3, Opus, AAC

Linux

Runs on
x86_64 with PipeWire
Virtual devices
As many as you need, with your own names
Password to install
Not needed
System audio capture
Yes
Per-app audio capture
Yes
Plugins
CLAP, VST3
Recording formats
WAV, FLAC, AIFF, MP3, Opus

Windows

Runs on
Windows 10 2004 or newer and 11, 64-bit
Virtual devices
One VB-CABLE virtual microphone, installed from the app
Password to install
Administrator approval for VB-CABLE
System audio capture
Yes
Per-app audio capture
Yes
Plugins
CLAP, VST3
Recording formats
WAV, FLAC, AIFF, MP3, Opus

Frequently asked questions

What is Splitwave?

A free, open-source desktop audio router for macOS, Linux and Windows. You build a node graph — sources, effects, outputs — and it runs in real time while you rewire it.

How do I set up a virtual audio cable?

Open Virtual devices in Splitwave and click Install. On macOS you enter your password once; on Linux no password is needed. Then add as many named devices as you like — every app sees each one as a microphone and a speaker. On Windows the same button downloads and installs VB-CABLE.

Virtual devices screen in Splitwave with two named virtual devices

How do I use Splitwave as a microphone in Discord, Zoom or OBS?

Wire Microphone → Mute → a Speaker node set to your virtual device, then pick that virtual device as the microphone in Discord, Zoom, Teams or OBS. Bind a key to the Mute node to mute yourself in all those apps at once.

Microphone node wired through a Mute node into a Speaker node set to a Splitwave virtual device

How do I route audio through AU, CLAP or VST3 plugins?

Add a Plugin node, choose an installed VST3, AU or CLAP plugin, and wire it into the chain like any built-in effect. You can open the plugin's own editor from the node — no DAW or separate plugin host needed.

Microphone wired through a CLAP plugin node with its parameters into a virtual device

How do I route audio between apps?

Capture one application with an App Audio node, add effects if you want, and send it to a virtual device. The other app — OBS, your DAW, a call — selects that device as its input.

App Audio node capturing Google Chrome, wired into a Speaker node set to a virtual device

How do I record system audio?

Wire a System Audio node into a File Recording node. It records WAV, FLAC, AIFF, Opus or MP3 (plus AAC on macOS), and you can mix your microphone into the same file.

System Audio node wired into a File Recording node recording WAV with a live waveform

Can one source feed several outputs at once?

Yes. Connect one output to several nodes — headphones, a virtual device and a recording at the same time, each with its own effects.

One App Audio node wired to laptop speakers, a virtual device and AirPods at the same time

Can I stream audio to another computer?

Yes. A UDP sender and receiver pair, or a WebRTC node, carries audio between machines. Audio leaves your computer only through network nodes you add yourself.

Does Splitwave work with my DAW?

Yes. Send audio to a virtual device and pick it as the input in Logic Pro, Ableton Live, Reaper or any other DAW.

Which platforms are supported?

macOS 13 Ventura or newer (Apple Silicon and Intel), Linux x86_64 with PipeWire, and Windows 10 and 11 (64-bit).

Does it need a kernel extension or my password on macOS?

No kernel extension. macOS asks for your password once, when Splitwave installs its userspace audio driver for virtual devices.

Does Splitwave send my audio anywhere?

No. Everything is processed locally, with no account and no analytics. The only routine request is a check for new releases on GitHub.

Is Splitwave an alternative to BlackHole, Loopback, Audio Hijack or VoiceMeeter?

It covers many of the same jobs — virtual devices, app-to-app routing, mic processing and recording — in one node graph. Each tool has its own features, so check that Splitwave fits your workflow. Splitwave is independent and not affiliated with the makers of these products.

Is Splitwave free?

Yes. It is free and open source under the MIT license, with the source code on GitHub.

Build your first pipeline

Free and open source, for macOS, Linux and Windows.
